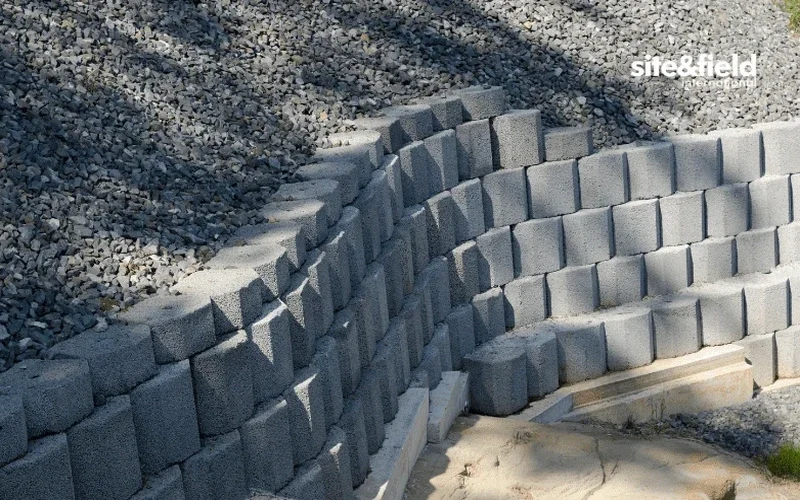

Retaining Wall Design for Glasgow Ground Conditions

Glasgow sits on a complex glacial legacy. The city centre is underlain by thick sequences of glacial till, but large areas, particularly along the Clyde corridor and former industrial sites, are covered in made ground up to 8 metres deep. This artificial fill is unpredictable. Brick fragments, ash, old foundations. For retaining wall design, that means bearing capacity varies wildly over short distances. In our experience, combining a detailed test pit campaign with targeted SPT drilling gives the clearest picture of what a wall will actually sit on. The till beneath is generally competent, a stiff sandy silty clay with cobbles, but getting through the made ground without triggering collapse during excavation is where local knowledge counts.

Perched water in made ground and unmapped mine workings are the two Glasgow-specific risks that define retaining wall performance here.

Process and scope

What we repeatedly encounter in Glasgow is perched groundwater in the made ground, totally disconnected from the deeper aquifer. You hit water at two metres in fill, then dry conditions in the till below. Standard drainage assumptions fail here. A gravity wall designed without accounting for this perched water will eventually develop hydrostatic pressure behind the stem and start to rotate. That is why we insist on standpipe piezometers installed during the investigation phase, not as an afterthought. The other local reality is coal mining legacy. The city sits on the Glasgow coalfield. Shallow mine workings, particularly in the Possil and Knightswood districts, introduce cavity collapse risk. A retaining structure over a void migrates failure upward. We integrate mine shaft treatment records and rotary probing into every wall design where historical maps show extraction beneath the site.

Site-specific factors

Ground conditions shift dramatically between Glasgow's east end and the Bearsden area. The east end, around Parkhead, has deep made ground with demolition rubble, former industrial backfill, and organic pockets near old watercourses. A cantilever wall there needs careful assessment of passive resistance because disturbed fill offers poor restraint. In Bearsden, the glacial till is near surface, stiff and bouldery, which is much better for bearing but can cause refusal issues during piling if a contiguous bored pile wall is specified. The most common failure we encounter is not structural collapse but serviceability: excessive deflection from underestimated lateral earth pressures in mixed fill profiles. Eurocode 7 serviceability checks become critical. Lateral movement exceeding 0.5% of retained height cracks adjacent pavements and service trenches, and in a dense urban environment like Glasgow, that triggers costly third-party claims.

Typical values

Parameter	Typical value
Design approach	DA1 (Combination 1 and 2) per Eurocode 7
Design life	50 or 120 years depending on structure classification
Surcharge loading	Typically 10 kPa for light traffic, 20–33 kPa for highways per BD 37/01
Backfill material	Free-draining granular, Class 6I/6J per Series 600 SHW
Seismic coefficient	Negligible for Glasgow (low seismicity zone)
Groundwater factor	Perched water condition assessed via standpipe monitoring
Minimum embedment	1.2 m or depth to competent till, whichever is greater
Partial factors on soil	γφ' = 1.25, γc' = 1.25 per UK National Annex

Complementary services

Gravity and reinforced concrete wall design

For sites where excavation is feasible and space permits, we design reinforced concrete cantilever, counterfort, and gravity walls. Each design includes global stability checks using Spencer's method, bearing capacity verification on glacial till or improved ground, and drainage detailing specific to perched water conditions. We produce full calculation packages and reinforcement drawings.

Embedded retaining wall design

For constrained urban sites along the Clyde corridor, we design sheet pile, secant pile, and contiguous bored pile walls. Analysis uses limit equilibrium and finite element methods to model propped and unpropped conditions. Temporary works stages are explicitly designed because excavation in made ground adjacent to existing structures demands rigorous movement predictions.

Questions and answers

What does retaining wall design cost in Glasgow?

For a typical domestic or small commercial retaining wall in the Glasgow area, design fees range from £920 to £2,850 depending on wall height, ground investigation data availability, and whether the structure requires Building Warrant submission. Complex embedded walls with multiple propping stages and numerical analysis fall at the upper end. The cost covers structural calculations, drainage design, stability verification, and a design report suitable for SER certification.

How does Glasgow's made ground affect retaining wall design?

Made ground introduces high variability in strength and stiffness. We typically characterise it through a combination of SPT and trial pits to identify zones of weak fill, organics, or obstructions. The design must account for differential settlement if the wall bears partly on fill and partly on till. We also specify backfill replacement behind the wall to reduce lateral pressures and include drainage measures to intercept perched water that accumulates in the fill layer above the till interface.

Are retaining wall designs in Glasgow affected by mining subsidence?

Yes, particularly in areas overlying the Glasgow coalfield. The Coal Authority provides mine entry and seam information. If shallow workings are present within 10 times the seam thickness below foundation level, we incorporate a mine treatment design or specify a reinforced raft foundation beneath the wall to bridge potential voids. Subsidence-induced ground strain is applied as an additional load case per the principles of CIRIA SP32.
